Description

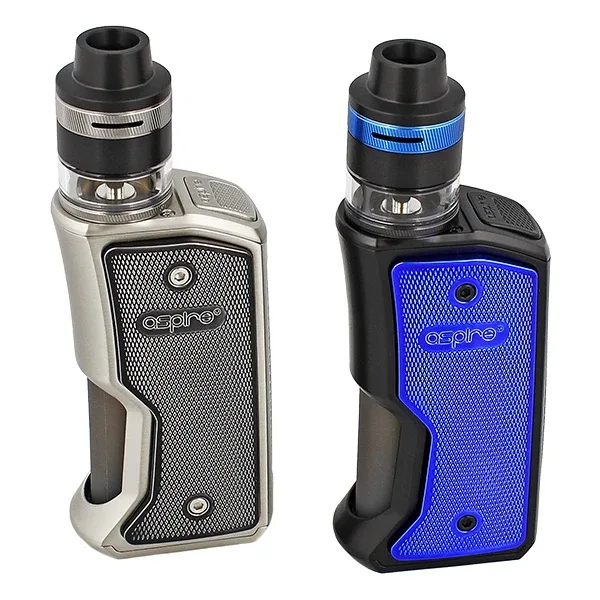

Aspire proudly introduces the Aspire Feedlink Revvo Kit, an all-new Aspire squonk mod with a slightly redesigned Revvo Boost Tank. The Aspire Revvo Boost Tank retains all the same great features as the original Revvo Tank, but now with squonk mod compatibility. Powered by a single high amp 18650 battery, the Aspire Feedlink is a semi unregulated mechanical mod that operates in bypass mode with multiple on-board safety protections. The Feedlink features a slim, contoured design with texturized gripping, making it extremely ergonomic.
Please Note: The Aspire Feedlink Mod is NOT Micro USB rechargeable. Please use an external charger to recharge batteries.
Aspire Feedlink Mod
Dimensions: 87mm by 48mm by 30mm
Powered By Single High Amp 18650 Batteries (Sold Separately)
Bottom Feeding (Squonk) Design
Removable 7ml Silicone Squonk Bottle
Semi Unregulated Mechanical Mod (Bypass Output)
Voltage Output Range: 3.0V – 4.2V
Resistance Range: 0.1Ω – 3.5Ω
LED Battery Life Indicator
Blue Light: Above 3.8V
Blue/Orange Light: 3.5V – 3.8V
Orange Light: Below 3.5V
Locking Functionality
Rapidly Press Fire Button 5 Times
Top Mounted Firing Button
Spring Loaded Gold Plated Squonk Pin
Threaded Bottom Battery Cap Insert
Bottom Squonk Bottle Insert
Protections: Short-Circuit, Reverse Battery, Over-Heat, Over-Discharge, 10 Seconds Switch Timeout
Aspire Revvo Boost Tank
24mm Diameter
Stainless Steel & Pyrex Glass Construction
Bottom Feel Squonk Design
2ml E-Liquid Capacity
Aspire Radial Coil
Kanthal AF Wire
Organic Cotton
Replaceable Stove Top Coil Design
Resistance Range: 0.10Ω – 0.14Ω
Wattage Range: 70W – 80W
Bifunctional Coil Mounting Screw
Secures Aspire Radial Coil
Spit-Back Protection
Triple Adjustable Top Airflow Control
10.5mm by 2.5mm Airflow Slots
Proprietary Drip Cap
Gold Plated Pin
Includes:
1x Aspire Feedlink Mod
1x Aspire Revvo Boost Tank
2x Revvo Boost Coil
1x Extra Glass Tank
1x Bag Of Spare O-Rings
2x Warning Card
1x Warranty Card
1x User ManualWarning: This product is for advanced users only and proper precautions/handling should always be used. Never use any atomizer on a hybrid mod with a 510 connection that is flush or shorter than the 510 threading of the atomizer to avoid any possible injuries.
Disclaimer: Please use extreme caution when working with Li-Ion (Lithium-Ion), LiPo (Lithium-Ion Polymer) and any other rechargeable batteries. The user should have fundamental knowledge of batteries and battery safety before using these types of batteries to avoid injury. Always charge in/on a fire-proof surface. Never leave charging batteries unattended. Do not use any rechargeable battery as well as any battery charger if any visible damage is present, as well as if the cell or charger has been stressed through mishandling or accidental causes even if damage may not be visible. Always store and transport rechargeable cells in a safe, non-conductive container in a controlled environment. Dispose of all battery cells and chargers in accordance to local laws and mandates. Eciggity will not be held responsible for any damage or injury caused by misuse or mishandling of Li-Ion, LiPo and any other rechargeable batteries.
